The Smarter Way To Work. Designed to enhance everyday productivity, the Lenovo™ ThinkPad® Universal USB-C Smart Dock is at the cutting edge of our new series of docks offering a smarter way to work. A bridge to a more intelligent future, the dock features a rich array of data, display, and power ports, including universal USB-C compatibility, while driving incredible performance for commercial users and a secure cloud-based management solution for IT managers. And it’s all powered by Microsoft Azure Sphere.
| Connectivity technology | Wired |
|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| HDMI ports quantity | 1 |
|---|
| Microphone in | No |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery revision | 3.0 |
|---|
| USB Power Delivery up to | 96 W |
|---|
| DisplayPorts quantity | 2 |
|---|
| Combo headphone/mic port | Yes |
|---|
| Ethernet LAN | Yes |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| Product colour | Black |
|---|
| Card reader integrated | No |
|---|
| Compatibility | FCC/ICES; CE; RCM; BSMI; VCCI; CB; cULus; TUV- Mark; LoA |
|---|
| Power source type | AC |
|---|
| AC input voltage | 135 V |
|---|
| Power supply | 135 W |
|---|
| Operating temperature (T-T) | 0 - 35 °C |
|---|
| Width | 171 mm |
|---|
| Depth | 80 mm |
|---|
| Height | 31 mm |
|---|
| Weight | 390 g |
|---|
| Quantity per pack | 1 pc(s) |
|---|
| Package width | 210 mm |
|---|
| Package depth | 158 mm |
|---|
| Package height | 75 mm |
|---|
| Package weight | 1.25 kg |
|---|
| Warranty card | Yes |
|---|

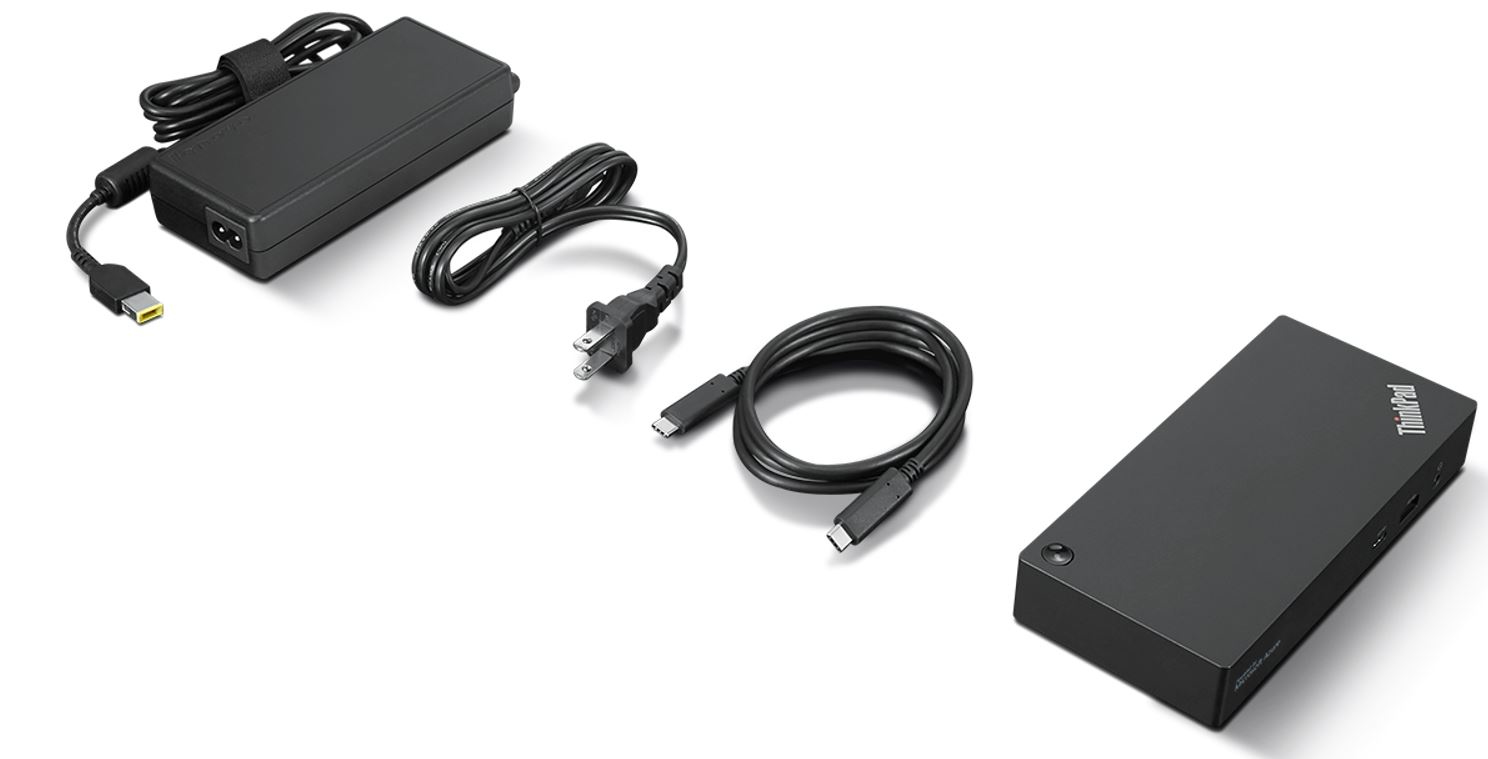

| Cables included | AC, USB Type-C |
|---|
| AC adapter included | Yes |
|---|
| Quick start guide | Yes |
|---|
| Manual | Yes |
|---|
| Compliance certificates | CE, RoHS |
|---|
| Harmonized System (HS) code | 84733020 |
|---|
Detailed Specifications
